Gasket & Bolt Kits
Gasket and Bolt Kits
(Available with Galvanized or Stainless Steel Hardware)
(Larger Sizes Available on Request)

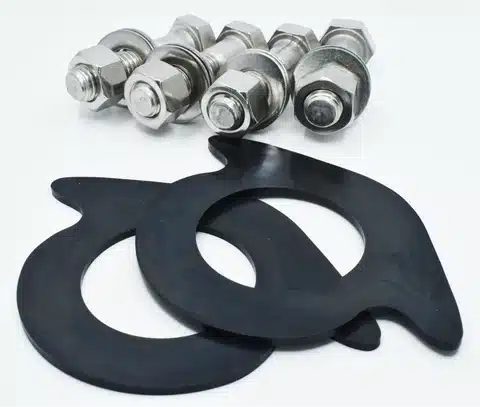

1 1/2" Drop In Gasket Kit
| Part # | Gasket Type | Bolts |
| KD-150 | (2) Drop-in | (4) 5/8″ x 2 1/2″ |
2" Drop In Gasket Kit
| Part # | Gasket Type | Bolts |
| KD-200 | (2) Drop-in | (4) 5/8″ x 2 1/2″ |

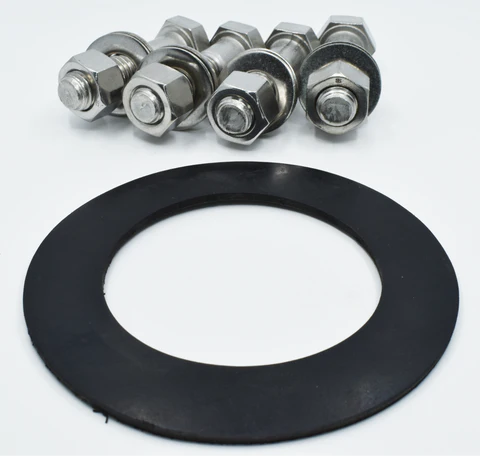

Ring Gasket Kits
2" Ring Gasket Kit
| Part # | Gasket Type | Bolts |
| KR-2 (EPDM) | Ring | (4) 5/8″ x 2 1/2″ |
3" Ring Gasket Kit
| Part # | Gasket Type | Bolts |
| KR-3 (EPDM) | Ring | (4) 5/8″ x 2 1/2″ |
4" Ring Gasket Kit
| Part # | Gasket Type | Bolts |
| KR-4 (EPDM) | Ring | (8) 5/8″ x 3″ |
6" Ring Gasket Kit
| Part # | Gasket Type | Bolts |
| KR-6 (EPDM) | Ring | (8) 3/4″ x 3 1/2″ |
8" Ring Gasket Kit
| Part # | Gasket Type | Bolts |
| KR-8 (EPDM) | Ring | (8) 3/4″ x 3 1/2″ |

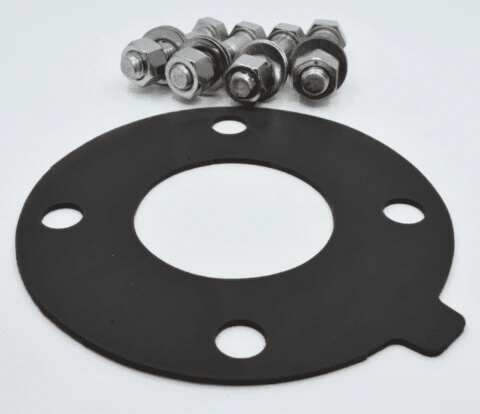

Full Face Gasket Kits (EPDM)
3" Full Face Gasket Kit (EPDM)
| Part # | Gasket Type | Bolts |
| KF-3 | Full Face | (4) 5/8″ x 2 1/2″ |
4" Full Face Gasket Kit (EPDM)
| Part # | Gasket Type | Bolts |
| KF-4 | Full Face | (8) 5/8″ x 3″ |
6" Full Face Gasket Kit (EPDM)
| Part # | Gasket Type | Bolts |
| KF-6 | Full Face | (8) 3/4″ x 3 1/2″ |
8" Full Face Gasket Kit (EPDM)
| Part # | Gasket Type | Bolts |
| KF-8 | Full Face | (8) 3/4″ x 3 1/2″ |
